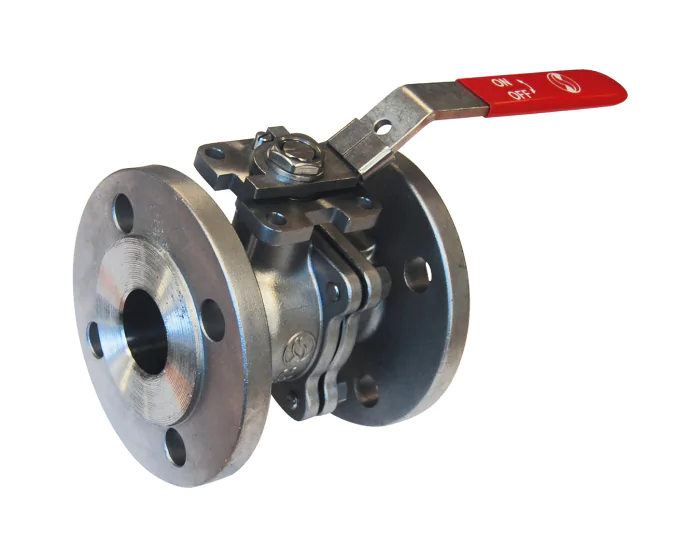

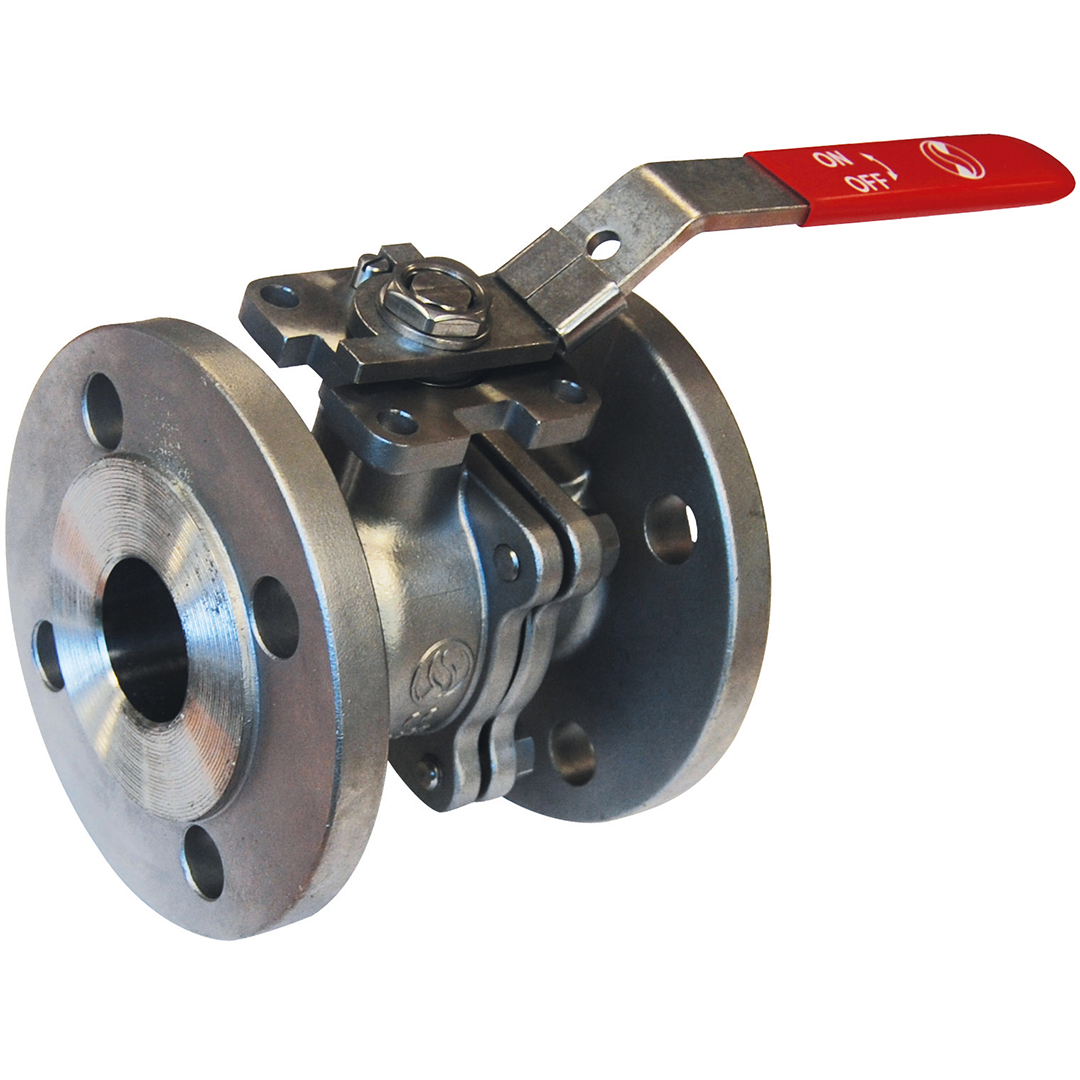

Stainless steel ball valve 794 2 piece body RF ANSI150 1/2''
€49.41
(excl. btw)
Stainless steel ball valve 794 2 piece body RF ANSI150 2"
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 |
| CE risk category | II Module D1 |
| EN face-to-face standard | EN 558 Series 3 |
| ASME face-to-face standard | ASME B16.10 |
| Face to face standard | EN 558 Series 3. ASME B16.10 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 6 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 1470.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | F04 |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | Split body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 794015 | S1006668 |
€49.41
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 794020 | S1006669 |
€55.99
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 794025 | S1006670 |
€81.09
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 794032 | S1006671 |
€95.23
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 794040 | S1006672 |
€159.61
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 794050 | S1006673 |
€210.17
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 794065 | S1006674 |
€326.56
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 794080 | S1006675 |
€435.94
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 794100 | S1006676 |
€738.50
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 794150 | S1006677 |
€1,712.61
(excl. btw)
|
add to cart |
